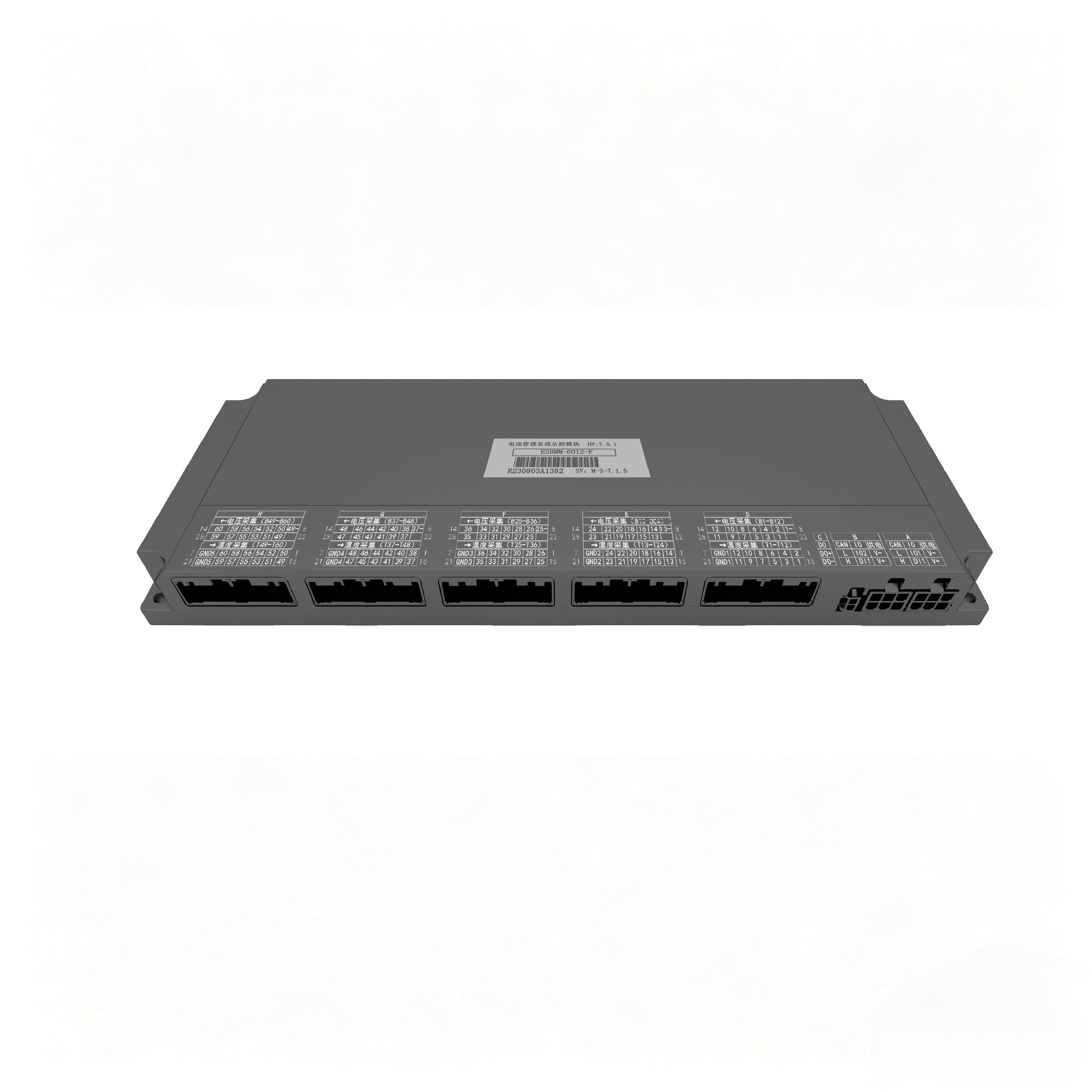

The ESBMM-6012-F is a BMS slave module designed for 1500Vdc energy storage systems. It provides high-precision cell-level voltage monitoring for 60 cells and features comprehensive thermal management with 60 NTC (10K) temperature sensors. Equipped with reliable passive balancing control (100mA) and intelligent active thermal management (including fan speed control and feedback), this module ensures long-term operational safety, extends battery life, and complies with stringent international functional safety standards.
Ideal for 1500Vdc utility-scale energy storage plants requiring high-density 60-cell monitoring.
Ensures safety and efficiency for commercial microgrids through active thermal and fan speed control.
Stabilizes energy output for large-scale solar and wind power generation systems.
Ideal for multi-cell passive balancing and temperature tracking in battery containers.
| Type | Model | Supply Voltage | Voltage Series | Voltage Range | Temp Sensors | Temp Range | Balancing Current | Communication |
|---|---|---|---|---|---|---|---|---|
| Level 1 Slave Passive Balancing |
ESBMM-1212-F HV6.0.0 | DC24V | 12 | 0-5V | 14 | -40~125°C | 100mA | CAN |
| ESBMM-2412-F HV7.0.1 | 24 | 24 | ||||||
| ESBMM-3612-F HV7.0.1 | 36 | 36 | ||||||
| ESBMM-4812-F HV7.0.1 | 48 | 48 | ||||||
| ESBMM-6012-F HV7.0.1 | 60 | 60 | ||||||
| ESBMM-1612-F HV7.0.7 | / | 16 | 16 | Daisy Chain | ||||
| ESBMM-3212-F HV7.0.7 | 32 | 32 | ||||||
| ESBMM-4812-F HV7.0.7 | 48 | 48 | ||||||
| ESBMM-6412-F HV7.0.7 | 64 | 64 | ||||||
| ESBMM-6412-F HV7.1.0 | DC24V | 64 | 64 | CAN | ||||
| ESBMM-B212-F HV7.1.0 | 112 | 112 | ||||||
| Level 1 Slave Active Balancing |
ESBMM-1222-F HV4.0.6 | DC24V | 12 | 0-5V | 14 | -40~125°C | 2A | CAN |
| ESBMM-1622-F HV4.0.6 | 16 | 16 | ||||||
| ESBMM-2422-F HV4.0.6 | 24 | 24 | ||||||
| ESBMM-2622-F HV4.0.0 | 26 | 26 | ||||||
| ESBMM-5222-F HV4.0.0 | 52 | 56 | ||||||
| ESBMM-A422-F HV5.0.0 | 104 | 104 |
This module supports high-precision, cell-level voltage monitoring for up to 60 cells simultaneously. It features advanced 100mA passive balancing control, enabling controlled discharging of multiple cells within the same battery rack while accurately measuring the dissipated energy of each cell.
Yes, it is equipped with 60 NTC (10K) temperature monitoring points and supports active thermal management for cooling or heating. Furthermore, it features dedicated fan speed control, fan state feedback, and real-time speed detection to ensure maximum system safety and extend battery life.
Absolutely. It is purpose-built to meet the rigorous requirements of 1500Vdc Energy Storage Systems. It fully complies with critical international functional safety and electrical insulation standards, including GB/T34131, IEC62477, GBT36276, and EN/IEC/UL62368.
To facilitate seamless system integration, the module supports 1 digital signal output and 1 digital signal input detection. This allows it to communicate effectively with upper-level energy storage controllers and peripheral safety hardware.
