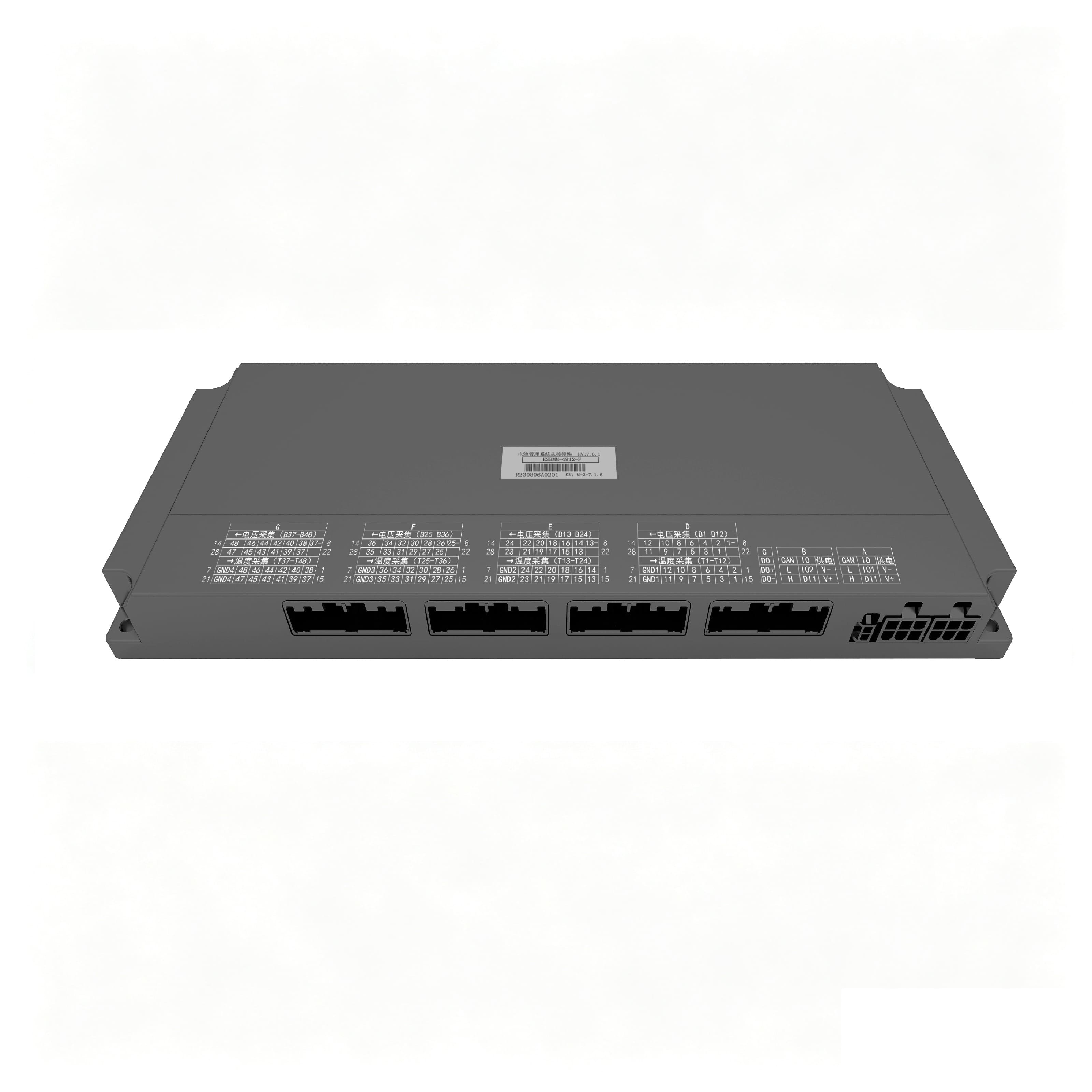

The 1500Vdc 48-Cell Battery Data Acquisition DAQ Module is a BMS slave module designed for 1500Vdc energy storage systems. It provides high-precision cell-level voltage monitoring for 48 cells and features comprehensive active thermal management with 48 NTC (10K) temperature monitoring points. Equipped with reliable passive balancing control (100mA), 1 digital signal input/output, and an ultra-low power DAQ mode (reducing potential current to 10uA or lower), this module ensures system safety, extends battery life, and complies with stringent international functional safety standards including GB/T34131, EN/IEC/UL60950, EN/IEC/UL62368, EN/IEC/UL60730, GBT36276, and IEC62477.
Ideal for utility-scale energy storage plants.
Ensures safety and efficiency for Commercial & Industrial microgrids.
Reliable battery monitoring for data centers and critical facilities.
Stabilizes output for solar and wind power generation systems.
| Type | Model | Supply Voltage | Voltage Series | Voltage Range | Temp Sensors | Temp Range | Balancing Current | Communication |
|---|---|---|---|---|---|---|---|---|
| Level 1 Slave Passive Balancing |
ESBMM-1212-F HV6.0.0 | DC24V | 12 | 0-5V | 14 | -40~125°C | 100mA | CAN |
| ESBMM-2412-F HV7.0.1 | 24 | 24 | ||||||
| ESBMM-3612-F HV7.0.1 | 36 | 36 | ||||||
| ESBMM-4812-F HV7.0.1 | 48 | 48 | ||||||
| ESBMM-6012-F HV7.0.1 | 60 | 60 | ||||||
| ESBMM-1612-F HV7.0.7 | / | 16 | 16 | Daisy Chain | ||||
| ESBMM-3212-F HV7.0.7 | 32 | 32 | ||||||
| ESBMM-4812-F HV7.0.7 | 48 | 48 | ||||||
| ESBMM-6412-F HV7.0.7 | 64 | 64 | ||||||
| ESBMM-6412-F HV7.1.0 | DC24V | 64 | 64 | CAN | ||||
| ESBMM-B212-F HV7.1.0 | 112 | 112 | ||||||
| Level 1 Slave Active Balancing |
ESBMM-1222-F HV4.0.6 | DC24V | 12 | 0-5V | 14 | -40~125°C | 2A | CAN |
| ESBMM-1622-F HV4.0.6 | 16 | 16 | ||||||
| ESBMM-2422-F HV4.0.6 | 24 | 24 | ||||||
| ESBMM-2622-F HV4.0.0 | 26 | 26 | ||||||
| ESBMM-5222-F HV4.0.0 | 52 | 56 | ||||||
| ESBMM-A422-F HV5.0.0 | 104 | 104 |
The module supports high-precision, cell-level voltage monitoring for up to 48 cells simultaneously, making it highly efficient for large-scale energy storage configurations.
Yes, it is equipped with 48 NTC (10K) temperature monitoring points and supports active thermal management. It can intelligently control cooling or temperature rise to ensure overall system safety and significantly extend battery life.
It features an advanced low-power DAQ mode. When operating in this mode, the potential current can be drastically reduced to 10uA or lower, minimizing energy drain when the system is inactive.
Absolutely. It is specifically designed to meet the rigorous requirements of 1500Vdc Energy Storage Systems and fully complies with international functional safety and electrical insulation standards, including GB/T34131, EN/IEC/UL62368, and IEC62477.
